Haynes 230 (UNS N06230)
High-temperature alloy

Haynes 230 (UNS N06230)
Features

HAYNES 230 is a useful material that features high-temperature strength and outstanding resistance to oxidizing environments up to 1149°C for long time exposure. It is easily fabricated and has very good forming and welding characteristics.

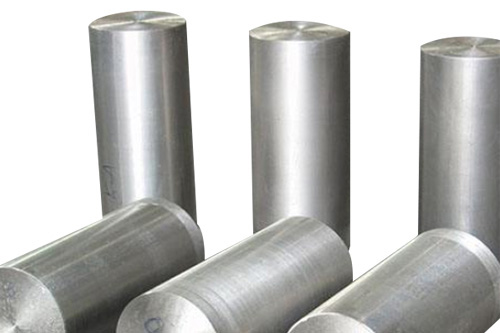

Product Form
Products ASME Standard ASTM Standard AME Standard
Plate, Sheet, Strip B575 SB575 SB575
Bar B622 SB622 SB622
Forging Part B619.B626 SB619.SB626 SB619.SB626
Wire B574 SB474 -
Welded ND Pipe B574 SB474 -
Seamless Pipe B574 SB474 -
Welded Pipe B574 SB474 -
Chemical Analysis
% Ni Cr W Mo Co Fe Mn Si C Al P S La B
Min. Balance 20 13 1 - - 0.3 0.25 0.2 - - 0.005 -
Max. Balance 24 15 3 5 3 1 0.75 0.15 0.50 0.03 0.015 0.05 0.015
Physical Properties
Density 8.97G/CM3
Melting Range 1301-1371℃
  • Applications
    Haynes 230 (UNS N06230)

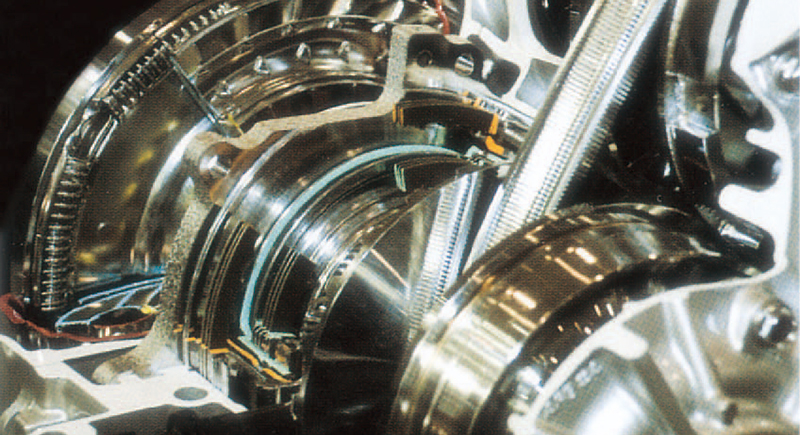

    • Gas turbine components
    • High temperature bellows
    • Furnace components
    • Combustion cans
    • Power plant
