INCOLOY 925 (UNS N09925)
Corrosion-resistant alloy

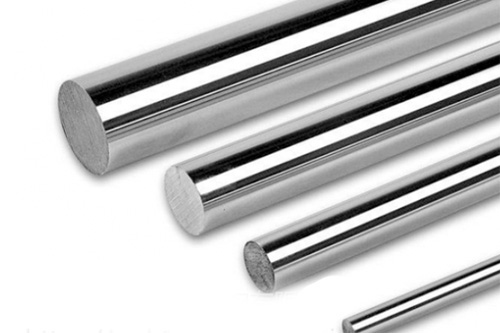

Incoloy 925 (UNS N09925)
Features

Incoloy 925 has excellent mechanical strength and a wide range of anti-corrosion abilities as well as resistance to pitting and crevice corrosion.

Chemical Analysis
% Ni Cr C Mn Fe Si Cu S Al Ti P Mo
UNS N09925 Min. 42 19.5 - - Balance - 1.5 - 0.15 1.9 - 2.5
Max. 46 23.5 0. 03 1 Balance 0.5 3 0.03 0.5 2.4 0.03 3.5
Physical Properties
Density 8.14G/CM3
Melting Range 1343℃
The Min. Mechanical Properties under Room Temperature
Alloy Tensile Strength Yield Strength Elongation
RM N/MM² RPO.2 N/MM2 A5%
Solution Treatment 650 300 30
  • Applications
    Incoloy 925 (UNS N09925)

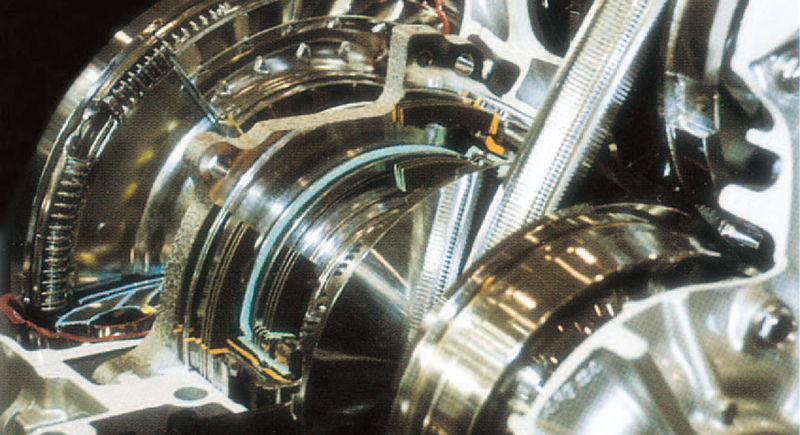

    • Drilling equipment components
  • Inquiry

Since 1999, BOS Metal Group has been China’s leading supplier of metal products.

Beyond our production operations, we offer technical consultation, technology development, and services involved in the field of special steel plates, super stainless steel, titanium and nickel alloys, chromoly alloys, aluminum alloys and more. All materials can be provided in different shapes like plates, bars, pipes, tubes, wire, beams, flanges, fittings, etc.
