Inconel 600 (UNS N06600)
Corrosion-resistant alloy / High-temperature alloy

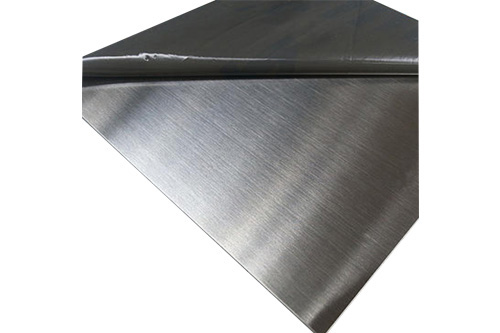

Inconel 600 (UNS N06600)
Features
  • Inconel 600 is a nickel-based alloy that features resistance to corrosion and high temperature. It can be formed easily.
  • Non-magnetic
  • Virtually immune to chlorine ion stress corrosion cracking
  • Excellent mechanical properties
Chemical Analysis
% Ni Cr C Mn Fe Si Cu P S
UNS N06600 Min. 72 14 - - 6 - - - -
Max. - 17 0. 15 1 10 0. 5 0. 5 0. 015 0. 015
Physical Properties
Density 8.4G/CM3
Melting Range 1370-1425°C
The Min. Mechanical Properties under Room Temperature
Alloy Tensile Strength Yield Strength Elongation Brinell Hardness
RM N/MM2 RP0.2 N/MM2 A5% HB
Annealing 550 240 30 S195
Solution Treatment 500 180 35 5185
  • Applications
    Inconel 600 (UNS N06600)
    • Gas turbine components
    • Pulp and paper industry
    • Aerospace
    • Nuclear engineering
    • Reactor vessels and heat exchanger tubing
