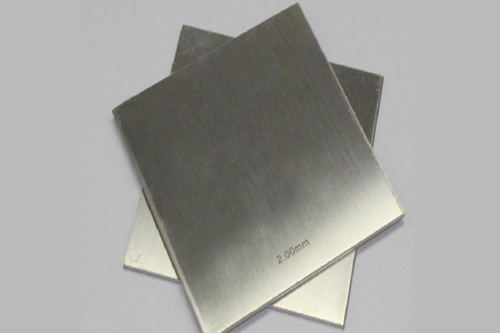

Hastelloy X (UNS N06002)
High-temperature alloy

Hastelloy X (UNS N06002)
Features

HASTELLOY X is a nickel- chromium- iron- molybdenum alloy with great resistance to oxidation under 1200℃. This alloy has outstanding cold and hot forming capabilities, and it should be heated to a starting temperature of 1175°C prior to processing.

Chemical Analysis
% Ni W Fe Mn C Si S Cr Mo P Cn
Hastelloy X Min. Balance 0.2 17 - 0. 05 - - 20.5 8 - 0.5
Max. Balance 1 22 1 0. 15 1.0 0. 03 23 10 0. 04 25
Standards
Bar Plate Seamless Pipe Welded Pipe Seamless Pipe Forging Part
ASTM B572 ASTM B435 ASTM B622 ASTM B619 ASTM B626 ASTM BB5
Physical Properties
Density 8.94G/CM3
Melting Range 1260-1355℃
The Min. Mechanical Properties under Room Temperature
Alloy Tensile Strength Yield Strength Elongation
RM N/MM2 RP0.2 N/MM2 A5%
HASTELLOY X 660 240 35
  • Applications
    Hastelloy X (UNS N06002)
    • Combustion chambers
    • Gas turbine engines
    • Fans and rollers in industrial furnaces
    • Nuclear engineering
    • Petrochemical industry
