MONEL K500 (UNS N05500)
Corrosion-resistant alloy

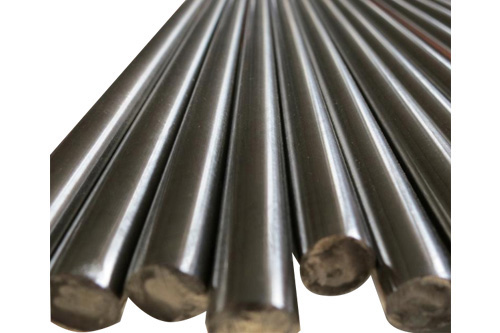

Monel K500 (UNS N05500)
Features
  • The Monel K500 alloy combines the excellent corrosion resistance of MONEL 400 with greater strength and hardness.
  • It has a tendency toward stress-corrosion cracking in some environments
  • The melting range is between 1288-1343℃.
  • The tensile strength up to 960 RM N/MM²
Product Form
Product ASTM Standard ASME Standard AME Standard
Sheet. Plate. Strip B127 SB127 4544
Seamless Pipe B163.B165 SB163.B165 4574
Welded Pipe B725 SB725
Bar B865 SB865 4675.4676
Forging Part B564 SB564 4675
Wire 4730.4731
Chemical Analysis
% Ni Cu Fe C Mn Si S Al Ti
MONEL K500 Min. 63 27 - - - - - 2.3 0.35
Max. - 33 2 0.18 1.5 0.5 0.01 3.15 0.85
Physical Properties
Density Melting Range Tensile Strength Yield Strength Elongation
8. 05G/CM3 1288-1343℃ RM N/MM² RPO.2 N/MM² A5%
960 690 20
  • Applications
    Monel K500 (UNS N05500)

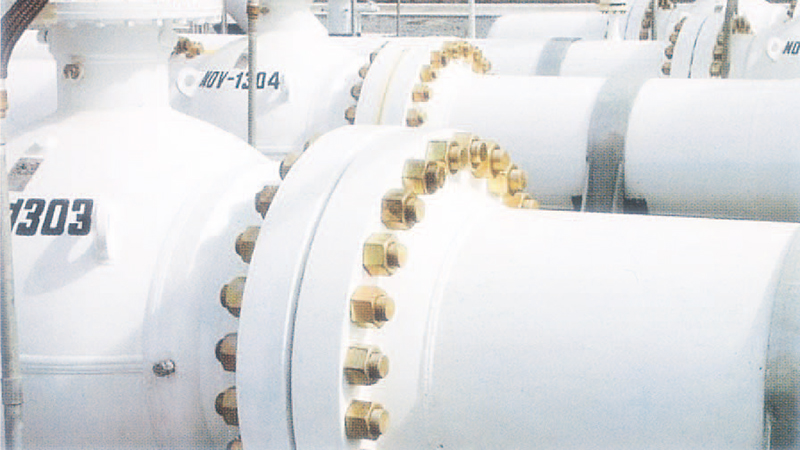

    • Sour-gas service applications
    • Oil-well tools and instruments
    • Pump shafts and impellers in marine
    • Doctor blades and scrapers
