Ti 6-2-4-2 (Ti-6Al-2Sn-4Zr-2Mo)
Near alpha titanium alloy

Ti 6-2-4-2 (Ti-6Al-2Sn-4Zr-2Mo)
Features
  • Ti 6-2-4-2 has good tensile strength and is commonly used in environments that get as hot as 538℃.
  • It has excellent anti-fatigue and resistance to crack propagation
Chemical Analysis
% Al Sn Zr Mo C N H O Si Fe Ti Y
Min 5.5 1.8 3.6 1.8 - - - - 0.06 - - -
Max 6.75 2.2 4.4 2.2 0.05 0.05 0.015 0.1 0.1 0.25 Balance 0.005
Product Form
  • Round bar

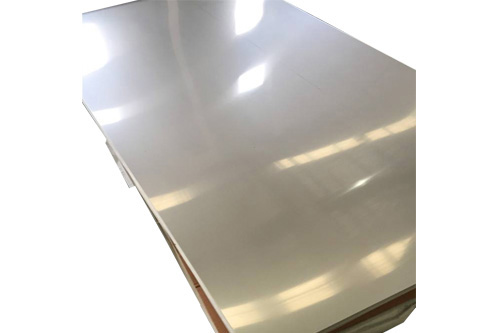

  • Sheet & plate
  • Welding wire
  • Strip
Physical Properties
Density Electrical Resistivity Specific Heat Capacity Thermal Conductivity Mean Coefficient of Thermal Expansion Melting Point
4.54 g/cm3 1.85 - 1.90 µ½•m 0.120 BTU/lb-°F, 0.502 J/g-°F BTU-in/hr-ft2-°F (W/m-K):
48.0 (6.92)		 µin/in-°F (µm/m-°C): 32.0 - 212 °F (0 - 100 °C): 4.28 (7.70) 1588 - 1716 °C
  • Applications
    Ti 6-2-4-2 (Ti-6Al-2Sn-4Zr-2Mo)
    • Compressor discs and blades

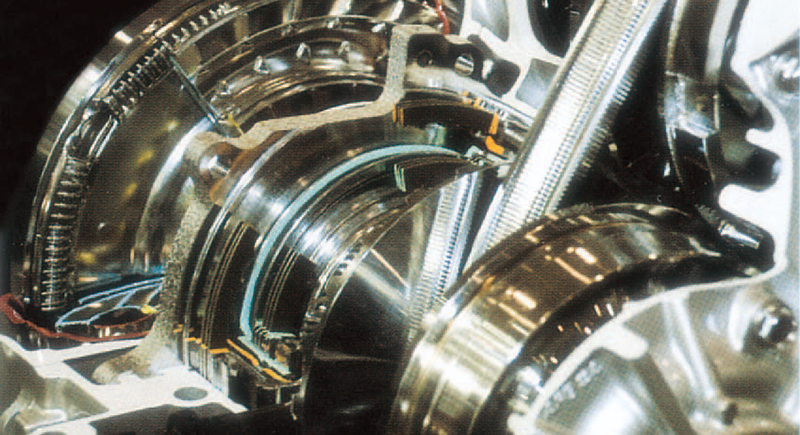

    • Motorsport components
    • Engine afterburner components
